Friction Rock Anchors (Split Sets)

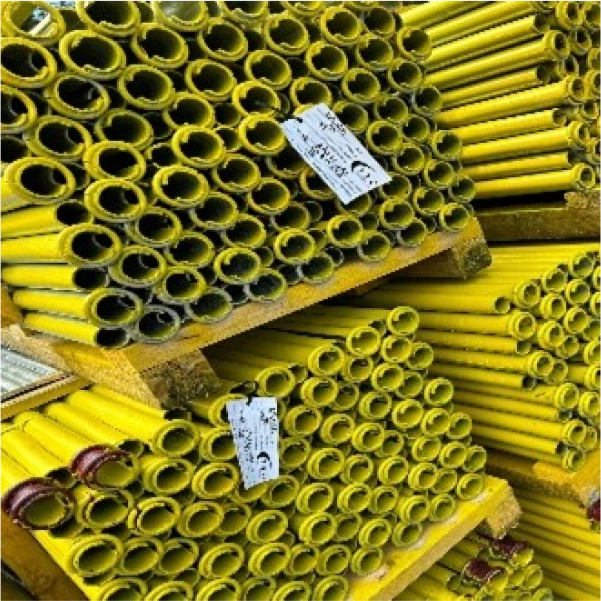

Description
Friction stabilisers – Split sets are made from high tensile (SUPRAFORM MC 420) high-graded steel that is roll-formed into a tubular section containing a continuous longitudinal opening along the length of the tube. An 8mm steel ring is fixed to the collar end (5mm from the edge) of the tube and when the Split set is installed into the recommended drilled hole size together with the desire bearing plate it establishes a compressive force against the rock. The product is supplied Non-Galvanised, Hot Dipped Galvanised & Thermal Defused Coating. The tapered end of the Split set enables easy insertion into the drilled hole. The compression of the tubular shape of the Split set into the recommended smaller diameter hole generates a load transfer from the steel to the rock. The tubular shape of the bolt enables increased contact of the steel against the rock generating radial pressure and creating frictional resistance to the pull-out load of the tube from the hole.
| Diameter | Length | Outer Dia | Taper Dia | Slot Width | Steel Thickness |
|---|---|---|---|---|---|
| 47mm | 0,9m - 3m | 47mm +_ 1mm | 41mm +_ 1mm | 22mm +_ 1mm | 3.2mm +- 2mm |
| 39mm | 0.9m - 2,4m | 39mm +_ 1mm | 34mm +_ 1mm | 17mm +_ 1mm | 2.3mm +- 2mm |
| 34mm | 0.45m - 1.8m | 34mm +_ 1mm | 28mm +_ 1mm | 14.5mm +_ 1mm | 2.3mm +- 2mm |
Ring End
Taper End
5 DOUBLE RINGS PER BUNDLE FOR PULL TESTING
